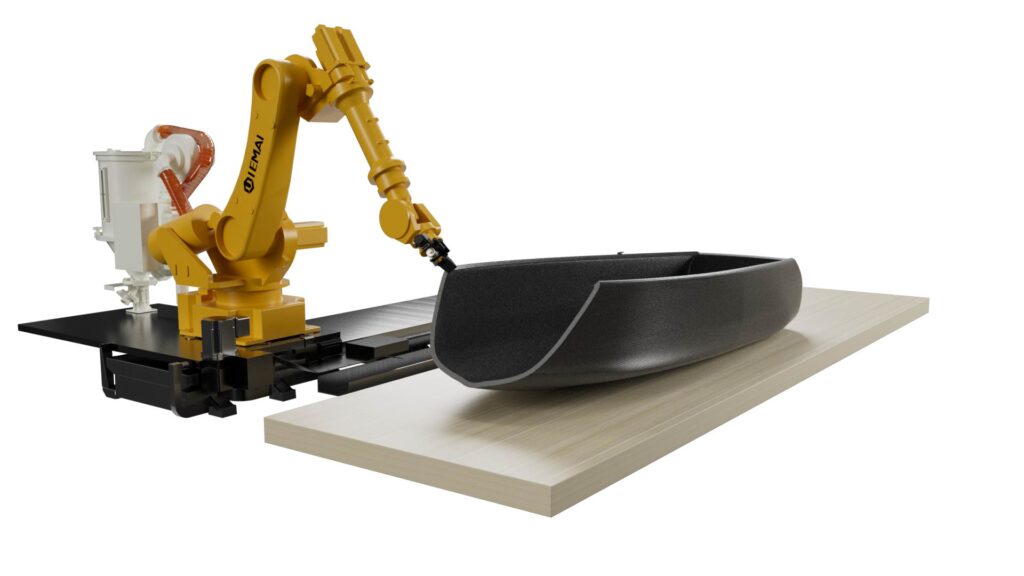

ROBOTIC ARM PELLET 3D PRINTING SOLUTION

With comprehensive coverage of robotic arm and all extruder head parameters, an intelligent software ecosystem, and compatibility with a wide range of pellet materials—we offer a one-stop solution to meet all your needs.

Robotic

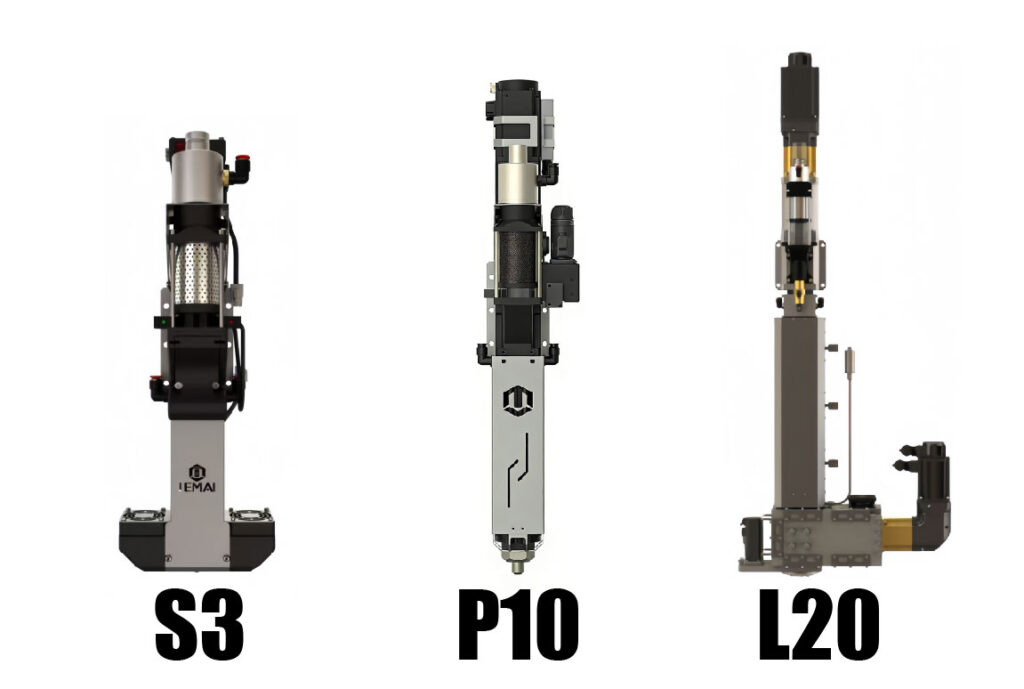

PELLET EXTRUDER

S3 Parameters

Weight：5.8KG
Size：480*145*128 mm
Screw Size：D27*L275 mm
Screw Heating Temperature：450℃,Three Heating Zones
Melt Pump Heating Temperature N/A
Cooling Method：Water Cooling (Insulation Section)+Air Cooling(Model Heat Dissipation)
Maximum Throughput：3KG/H
Applicable Nozzle：1,2,4,6,8,10mm
Power Supply：24V 0.89KW
Screw Motor Torque：0.96N.m
Melt Pump Motor Torque N/A
Rolling Shaft Motore Torque N/A

P10 Parameters

Weight：10KG
Size： H657.8 x W131.3 x L136.6 mm
Screw Size： D34 x L363 mm
Screw Heating Temperature：450℃,Three Heating Zones
Melt Pump Heating Temperature N/A
Cooling Method：Water Cooling (Insulation Section)
Maximum Throughput：10KG/H
Applicable Nozzle：1,2,4,6,8,10mm
Power Supply：220V 50Hz 2.1KW
Screw Motor Torque：1.91N.m
Melt Pump Motor Torque N/A
Rolling Shaft Motore Torque N/A

L20 Parameters

Weight：180KG
Size：1820*733*338 mm
Screw Size：D36*L900 mm
Screw Heating Temperature：500℃,Four Heating Zones
Melt Pump Heating Temperature：450℃
Cooling Method：Water Cooling (Insulation Section)+Air Cooling(Meltl Pump Coupling)
Maximum Throughput：20KG/H
Applicable Nozzle：4,6,8,10,15,20mm
Power Supply：220V 50Hz 15.5KW
Screw Motor Torque：15N.m
Melt Pump Motor Torque：5.0N.m
Rolling Shaft Motore Torque:1.91N.m

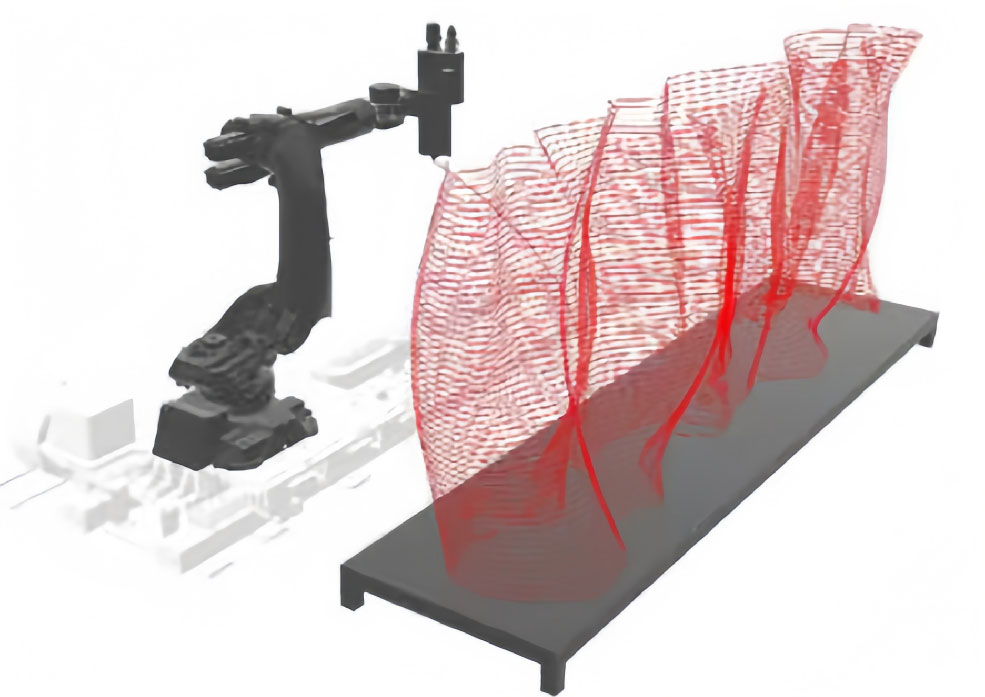

software

Support Functions:Scenario Construction, Process Planning, Virtual Simulation, Process Optimization,On-Site Testing.

Supports a variety of conventional path planning,including Linear, Unidirectional, Reciprocating, Offset, Z-Shaped and Planar Spiral are more suitable for complex shapes.

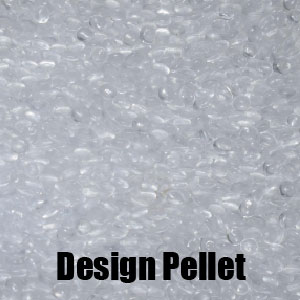

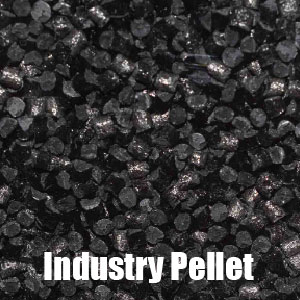

pellet

IEMAI 3D Printing Pellet allows you to have an excellent printing experience, will be able to outperform well and provide you with an amazing experience and performance for your parts or prototypes.
