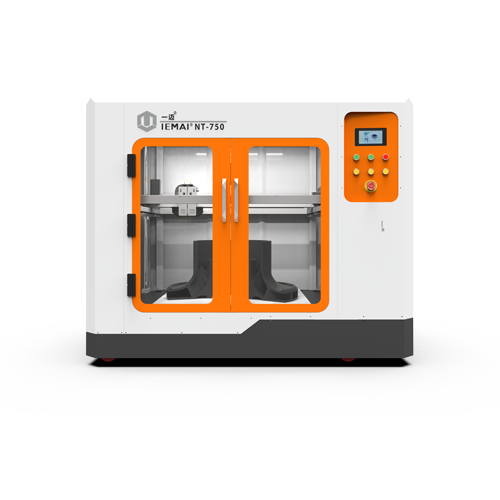

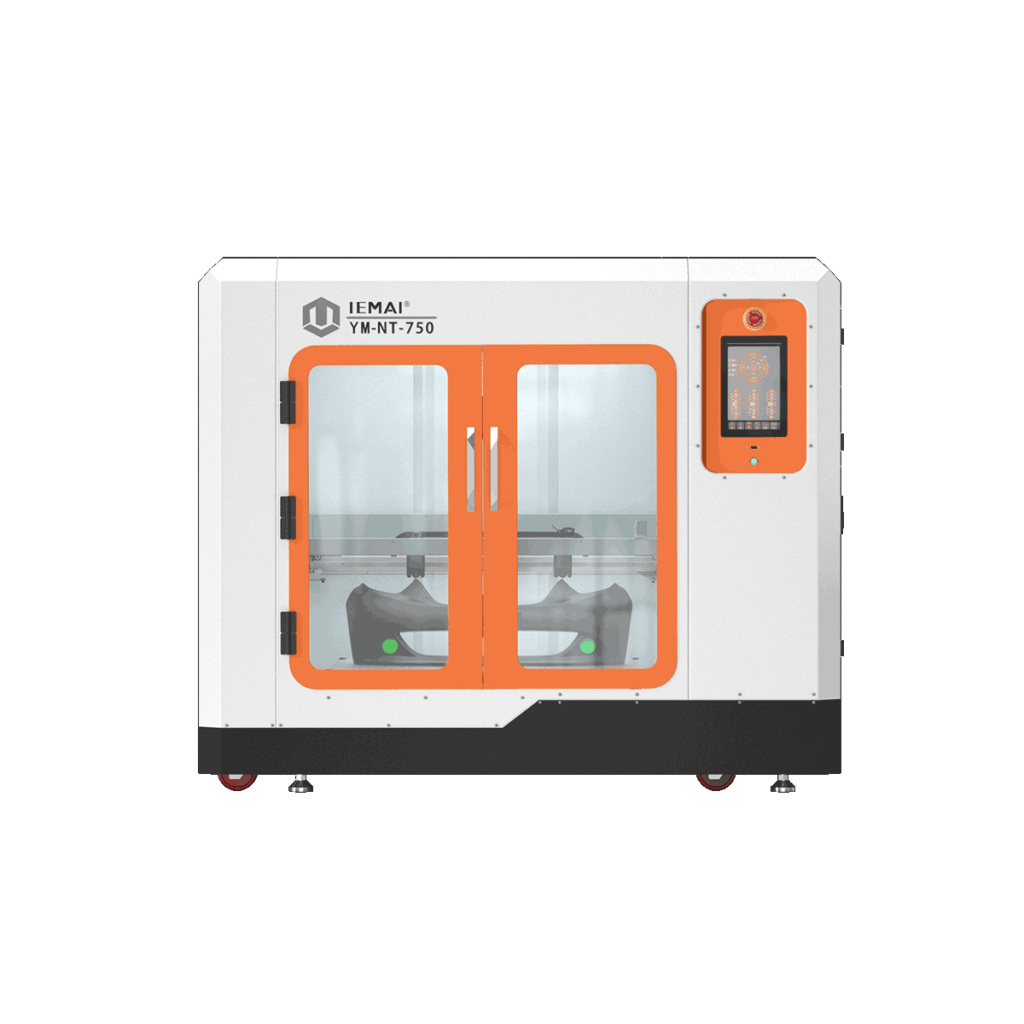

YM-NT-750
Build Volume：750×750×750 mm
Printing Temperature： Standard 350°C (450°C Upgrade Optional)
Hot Bed Temperature：Max 120°C
Chamber Temperature : Max 60°C
Filament Box Temperature:：Max 60°C
Temperature System
Printing Temperature:Standard 350°C (450°C Upgrade Optional)
Hot Bed Temperature:Max 120℃,Magnetic Adsorption,PEI Build Plate
Chamber Temperature:Max 60℃
Filament Box Temperature:Max 60℃
Temperature Secure Function:PID Auto Tuning,Temperature Stability ±2℃
Material System
1.75mm Diameter 3D Printing Filament(Thermoplastic)
Carbon Fiber Reinforced：CF-PPS,CF-PPA,CF-PAHT,CF-PA12,CF-PA6,CF-PC,CF-PET,CF-ABS,CF-ASA,CF-PETG,CF-PP,CF-PLA etc,Dimensional Accuracy 100mm±0.15mm
Glass Fiber Reinforced：GF-PPS,GF-PPA,GF-PAHT,GF-PA12,GF-PA6,GF-PC,GF-PET,GF-ABS,GF-ASA,GF-PETG,GF-PP,GF-PLA etc,Dimensional Accuracy 100mm±0.15mm
Other Modified：PC-ABS,PC-PBT,FR-PC,FR-ABS,ESD-PETG,ESD-ABS,316L etc,Dimensional Accuracy 100mm±0.15mm
Engineering：PA12,PA6/66,PC,ASA,ABS,TPU,PETG,PLA etc,Dimensional Accuracy 100mm±0.15mm
Support:E-Water,E-Remove etc
Extrusion System
Printing Speed:Max 200mm/s
Acceleration:10000mm/s²
Flow:60mm³/s(0.6mm Nozzle，100mm/s Speed,Under Condition of PLA Printing)
Nozzle Quantity:2 Nozzle Modular，IDEX Individual Motion
Cooling Method:Air Cooling
Nozzle Size:0.6mm(Standard) /0.4mm(Optional)
Nozzle Material:Hardened Steel
Recommended Layer Thickness:0.05-0.3mm
Motion Hardware
XYZ Axis Motor: Industrial Stepper Motor
X Axis Transmission: Linear Guide & Synchronize Belt
Y Axis Transmission:Linear Module
Z Axis Transmission:Rod Guide & Ball Screw
Positioning Accuracy: X/Y:5.86μm Z:1.56μm
Main Control Hardware
Screen:10.1In Color Touch Screen
Screen Resolution Ratio:1280x800Px
Flash Memory:32GB
Internal Memory:2GB
Motion Control Chip:STM32 ARM Cortex-M4 168MHz
Logic Control Chip:RK3576 Octa-Core（Arm Cortex-A72 2.2GHz + Arm Cortex-A53 1.8GHz）
Software Functionality
Slicing Software:IEMAI 3D SLICER,CURA,S3D,Prusa,OrcaSlicer
Feature Functionality:Power Failure Recovery,Filament Detection,Automatic Leveling,Automatic Switch-Off,Material Feeders Synchronize Control,Dual Nozzle IDEX Left Right Individual Motion,Dual Nozzle XYZ Distance Calibration, Magnetic Attraction Platform,Temperature PID Auto Tuning,Cloud Remote OTA
Cloud Monitor and Control（FREE)
Local Network Transmission and Control
Applicable to Confidentiality Enterprises,An Additional Fee of USD 980,Permanently Authorize.
Machine Operating System:Linux
Data Transmission:Ethernet,USB,WIFI
File Formats:STP/STEP,STL,OBJ,3MF etc
Operating System:Windows10/11 64 Bits
Size and Weight
Build Volume:750*750*750mm
Machine Size:1642*1110*1320mm
Package Size:1800*1300*1550mm
Net Weight:400KG
Gross Weight:430KG
Electric Parameter
Brand:Mean Well
Power Supply:220V±10% 50-60Hz Max Power 4.5KW
24 Hrs Average Power Consumption:2.2KW/H(ABS Printing) 0.5KW/H(PLA Printing)
Packing List
Machine,Tool Kits,Start-Up Material Sets,Spare Parts,Slicing Software
YM-NT-750 is specially designed for engineering plastic, with a temperature of 300 °C extruder temperature and 120 °C
hot bed temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the
extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive print.
