PELLET 3D EXTRUDERS
(3KG/H) Pellet Ext S3:
Extruder+Controller+Hopper Dryer+Air Compressor
Weight: 5.8kg
Size: H480 x W145 x L128 mm
Screw Size: D27 x L275 mm
Screw Treatment: 38CrMoA1A+Nitriding Treatment
(L/D): 10.2:1
Max. Motor Torque: 0.96N.m
Gear Ratio between Motor and Screw: 1:50
Max. Screw Speed: 40 (r/min)
Installable Equipment: Robot Arm & Frame Type
Heating Zones: 3
Cooling Zones: 2 (Insulation Section & Model Cooling)
Temperature Control: PID
Cooling Method: Water Cooling (Insulation Section)+
Air Cooling (Model Heat Dissipation)
Software: IEMAI 3D EXPERT
Power Servo Motor: STEPCNC
Power Supply: 24V
Servo System: 100W
Total Power: 890W
Extruder Control: Servo Motor+Planetary Reducer
Max. Throughput: 3KG/H
Max. Heating Temperature: 450℃
Applicable Nozzle: 1,2,4,6,8,10 mm
Recommended Layer Thickness: 0.5-5 mm

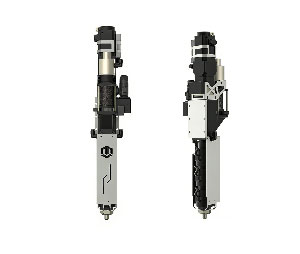

(6KG/H) Pellet Ext P6:
Extruder+Controller+Hopper Dryer+Air Compressor
Weight: 10kg
Size: H692 x W190 x L132 mm
Screw Size: D34 x L365 mm
Screw Treatment: 38CrMoA1A+Nitriding Treatment
(L/D): 10.7:1
Max. Motor Torque: 1.91N.m
Gear Ratio between Motor and Screw: 1:50
Max. Screw Speed: 60 (r/min)
Installable Equipment: Robot Arm & Frame Type
Heating Zones: 3
Cooling Zones: 2 (Insulation Section & Model Cooling)
Temperature Control: PID
Cooling Method: Water Cooling (Insulation Section)+
Air Cooling (Model Heat Dissipation)
Software: IEMAI 3D EXPERT
Power Servo Motor: STEPCNC
Power Supply: 220V/50HZ
Servo System: 0.6KW
Total Power: 2.1KW
Extruder Control: Servo Motor+Planetary Reducer
Max. Throughput: 6KG/H
Heating Temperature: 0-450 ℃
Applicable Nozzle：1,2,4,6,8,10 mm
Recommended Layer Thickness: 0.5-5 mm

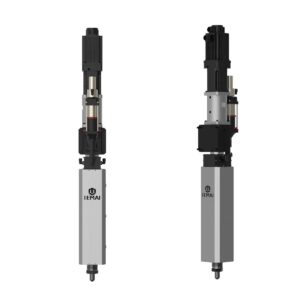

(20KG/H) Pellet Ext L20:
Extruder+Controller+Hopper Dryer+Compressed Air Source Components
Weight: 180kg
Size: H1820 x W733 x L338 mm
Screw Size: D36 x L900 mm
Screw Treatment: 38CrMoA1A+Nitriding Treatment
(L/D): 25:1
Max. Motor Torque: 15N.m
Melt Pump Motor Torque: 5.0N.m
Rolling Shaft Motor Torque: 1.91N.m
Gear Ratio between Motor and Screw: 1:30
Gear Ratio between Motor and Melt Pump: 1:40
Gear Ratio between Motor and Rolling Shaft: 1:2
Max. Screw Speed: 83 (r/min)
Max. Melt Pump Speed: 60 (r/min)
Melt Pump Flow: 20kg/h
Screw Heating Temperature: 0-500 ℃
Melt Pump Heating Temperature: 0-450 ℃
Installable Equipment: Robot Arm & Frame Type
Heating Zones: 4
Cooling Zones: 2 (Insulation Section & Melt Pump Coupling)
Temperature Control: PID
Cooling Method: Water Cooling (Insulation Section)+
Air Cooling (Melt Pump Coupling)
End Part Sensor: Equipped with Melt Pressure Sensor
Auxiliary Feeder Type: Optional Pneumatic Vibration Feeder
(for materials with high surface viscosity such as TPU/PU)
Software：IEMAI 3D EXPERT
Power Servo Motor: STEPCNC
Power Supply: 220V/50HZ
Screw Servo System: 3.8KW
Melt Pump Servo System: 1.5KW
Rolling Shaft Servo System: 0.6KW
Total Power: 15.5KW
Extruder Control: Servo Motor+Planetary Reducer
Maximum Throughput: 20KG/H
Applicable Nozzle: 4,6,8,10,15,20 mm
Recommended Layer Thickness: 2-10 mm

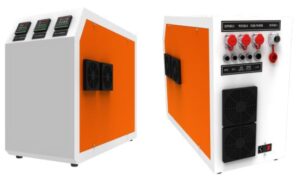

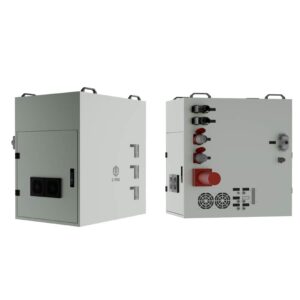

Controller for Pellet Ext S3 & P6
For Pellet Ext L20, the controller will be dedicated version.
Weight: 12kg
Size: H495 x W280 x L620 mm
Compressed Air Inlet Pressure Requirement: 0.6-0.8 Mpa
Compressed Air Inlet Humidity Requirement: <20% RH
Compressed Air Inlet Flow Requirement: >0.45m³/min
Power Supply: 220V/50HZ
Total Power: 950W
Built-in: Circulating Liquid Cooling System, Feeding Control System,
3 sets of 1000W Heating Temperature Controllers, Servo Driver 600W,
12V100W Fan Controller
Hopper Dryer 25kg for Pellet Ext S3 & P6 & L20
Weight: 40kg
Size: H1530 x W870 x L520 mm
Pellets Drying Capacity: 25KG
Drying Humidity: <20% RH
Drying Temperature: 0-120 ℃
Power Supply: 220V/50HZ
Total Power: 3635W
Efficient and Energy-saving
Thermal Circulation Drying
Equipped with Upper/Lower
Discharging Options
Equipped with a discharge port for ease of granular materials cleaning

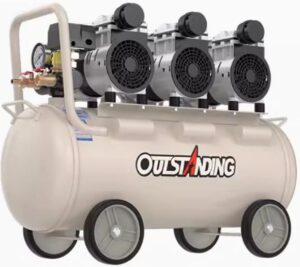

Air Compressor for Pellet Ext S3 & P6
Power: 2400W
Generated Flow: 180L/min
Air Tank: 65L
Pressure: 0.7Mpa
Weight: 57KG
Size: H65 x W38 x L97 cm
Speed: 1380R/Min
Compressed Air Source Components for Pellet Ext L20
Screw Type Compressor Parameters
Weight: 115kg
Size: H830 x W700 x L600 mm
Generated Flow：1.1m³/min
Generated Pressure: 0.8Mpa
Power Supply: 380V/50HZ
Total Power: 7.5KW
Permanent Magnet Variable Frequency Motor
Air Tank Parameters
Weight: 110kg
Size: H720 x W750 x L1960 mm
Operating Pressure：0.8Mpa
Capacity：600L
The top is equipped with safety automatic exhaust valve.
Drainage holes at the bottom.
Air Dryer Parameters
Weight: 38kg
Size: H660 x W650 x L425 mm
Operating Pressure: 0.4-1.0 Mpa
Air Treatment: 1.5m³/min
Air Source Pressure: 0.8Mpa
Power Supply: 220V/50HZ
Total Power: 370W
The inlet is equipped with a primary filter.
2 precision filters at the outlet.
