IEMAI 3D Printing Service Centre

Expert Level High Performance Materials 3D Printing Service Centre

Introduction

IEMAI Printing Centre

IEMAI Printing Centre is the 3D Printing Service Centre of Dongguan Imai Intelligent Technology Co., Ltd., (IEMAI3D). It has several independently developed industrial-grade 3D printing machine and is the world’s largest 3D printing parts delivery centre for IEMAI 3D. It is expected to provide enterprises and institutions with multiple international standard prototype models and small batch production manufacturing services.

Printing Adavantage

  10 Years’ Experience

 ISO9001 Quality Management

24 Hours Completion

Fully Confidential

  Excellent Application

 of 3D Printing Team

  International

 Standard Level

 Efficient Production

Never Leak Data

 Capacity

Case Studies

Real application Cases

Collarbone

Shoe Mold

 Electric Parts

Skull

Crested Ibis Replacement Fake Beak

Strength Of IEMAI

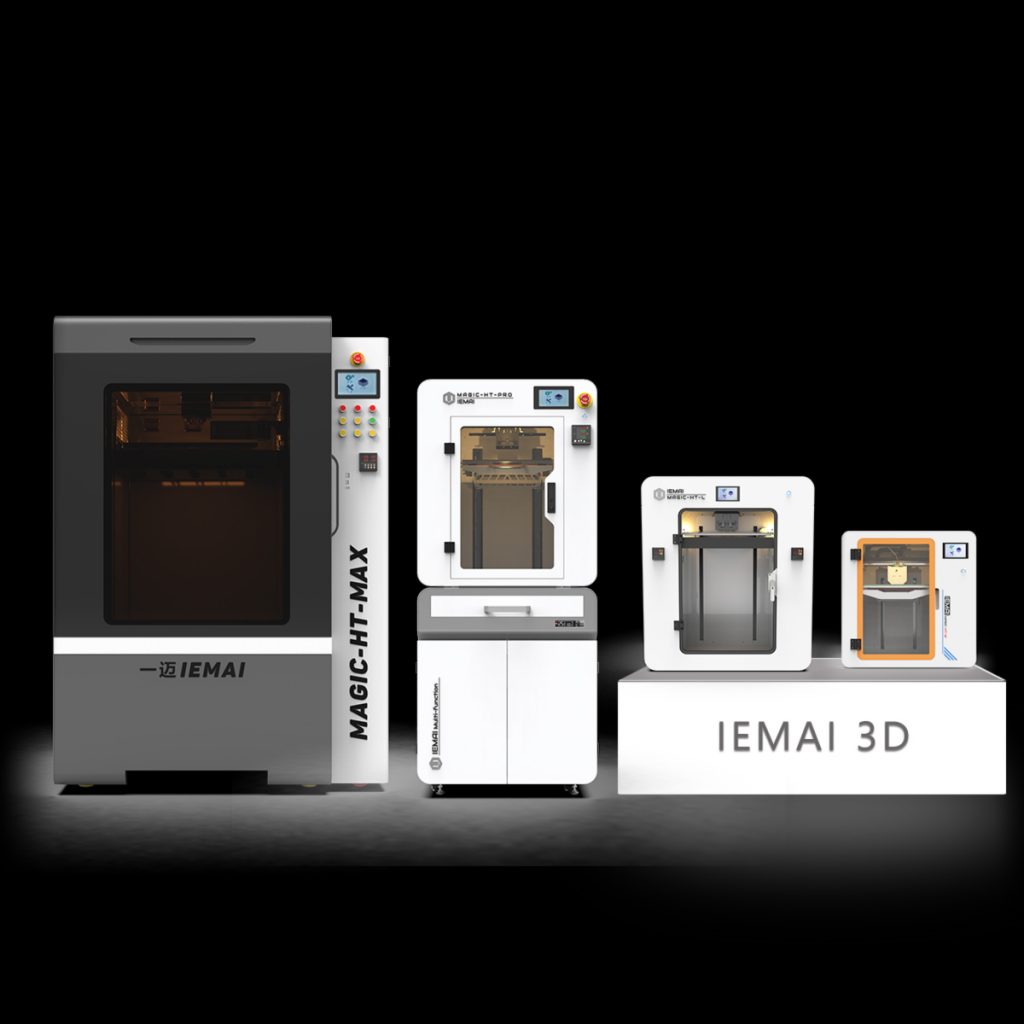

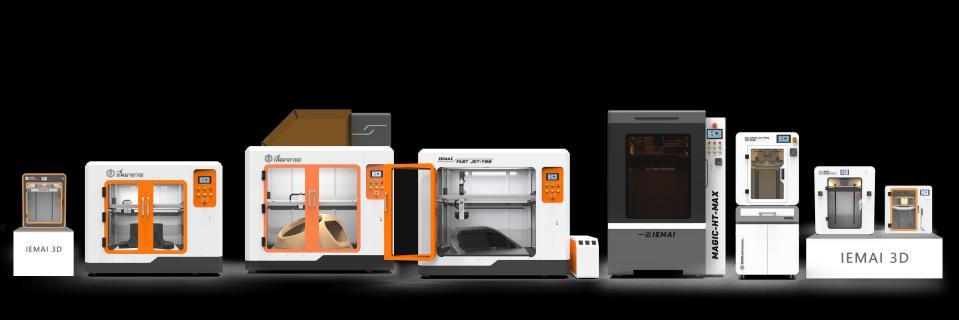

Professional 3D Printer

FDM: High Performance Materials 3D Printer

Printing Size         丨 500 × 500 × 700 mm

Precision                丨L < 100 mm: ±0.2 mm

                                     丨L ≥100 mm±0.2 % × L

Layer Thickness  丨0.2 – 2.0 mm

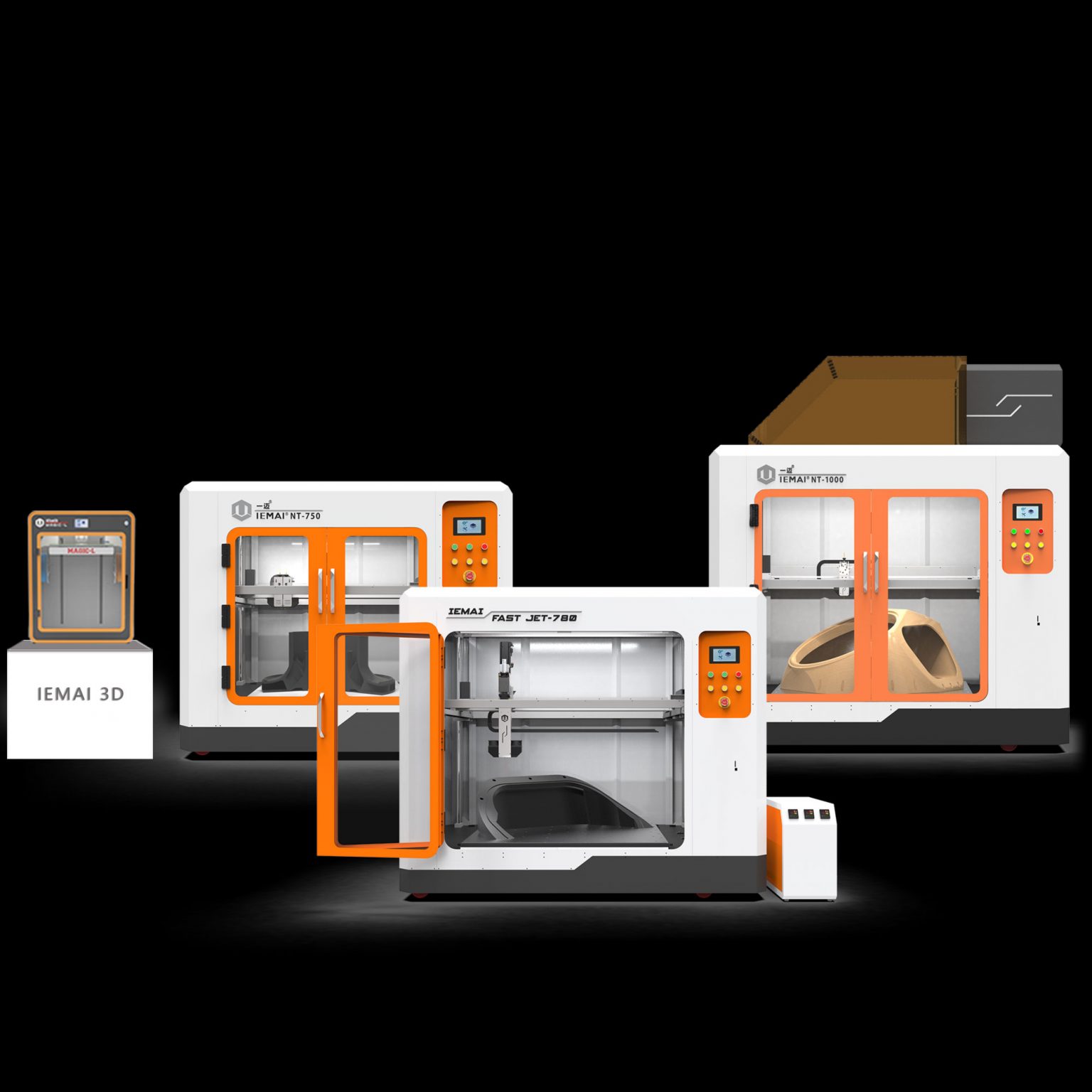

FDM: Large-Format 3D Printer And Granular 3D Printer

Printing Size         丨1000 × 1000 × 1000 mm

Precision                丨L < 100 mm: ±0.2 mm

                                     丨L ≥100 mm±0.2 % × L

Layer Thickness  丨0.2 – 2.0 mm

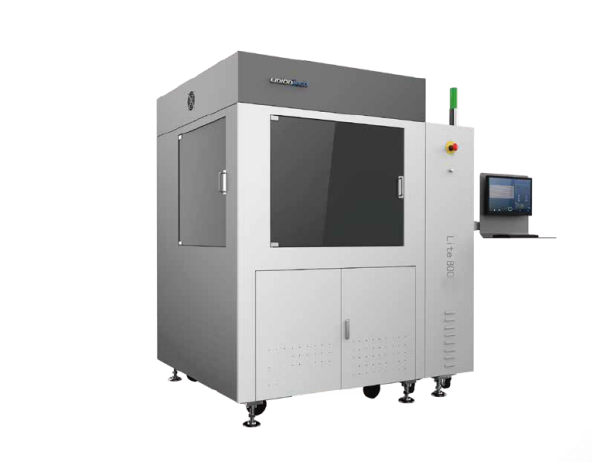

SLA: Large-Format Light-Cured 3D Printer

Printing Size         丨800× 800 × 550 mm

Precision                丨L < 100 mm: ±0.15 mm

                                     丨L ≥100 mm±0.15 % × L

Layer Thickness  丨0.07 – 0.25 mm

Certification Of Special Materials

FDM Engineering Plastic

FDM engineering plastics have special properties such as static dissipation, UV resistance, high temperature resistance, fire resistance and flame retardancy, which are similar to the performance of the final product, ensuring that the sample test data is true and reliable; using water-soluble support to ensure accuracy, complex structure samples, and the overall structure of the large sample is consistent in molding.

Special Engineering Plastic

PEEK

High Temperature Resistance

Bio-Compatability

Brown

CF-PEEK

High Temperature Resistance

Lightweight, Mechanical Properties

Black

PEI 9085

Aviation Certification

Grey-White

PEKK

High Dimension Stability

Brown

PEI 1010

Hig Temperature Resistance 220­°C

Amber

PPSU

High Temperature Resistance

Chemical Resistance

Amber

Common Engineering Plastic

PA

Low Density、High Tenacity、

Impact Resistance、Wear-Resisting

Black and White

CF-PA

Lighter Than PA

Great layer Adhesion

Black

GF-PA

Better Thermal

And Mechanical Property Than PA

Yellowish White

PP

Low Density

Strength And Rigidity

Milky White

PC

Excellent Mechanical Property

Light Efffect

Black and White

CF-PC

Excellent Mechanical Property

Light Weight

Black

ASA

Weather Resistance



Black

ABS

Common Engineering Plastic

Black, White

CF-ABS

Better Thermal Resistance

Lighter than ABS

Black

Common Consumer Plastic

CF-PLA

LightWeight, High Rigidity

Black

PLA

Environmental Friendly

Black、White、Red、Orange、Yellow、 Green、Blue、Translucent

TPU

Soft Material, Elastomer

Blue、White

PETG

Tough and Durable

Shiny And Transulent

Black、White、Red、Orange、Yellow、 Green、Blue、Translucent

SLA Photosensitive Resin Materials

The materials mainly used in light-curing 3D printing include photosensitive resins, such as engineering plastics, ceramic-like materials, and rubber-like materials. IEMAI 3D is committed to providing products with corresponding material properties according to the different needs of customers in the industry, including cost, appearance, details, mechanical properties, mechanical properties, chemical stability, and special application environments that can meet user needs.

Common Resin

Conceptual Models Of Industrial Fields Such As Automotive, Medical, Consumer Electronics ,etc.

Transparent Resin

Fluid Flow Analysis, Conceptual And Functional Models, Automotive Lenses,Bottles, Lamps

Post Processed And Testing

Surface Finsihing Services

Provide professional post-processing services
Grinding, Polishing, Silk Printing, Tapping/Inlaid Bolts, Sealing Treatment/Stress Relief
Spray paint (matte / high gloss / imitation plating / rubber / leather texture)

Grinding

Spray

Polishing

Skill Printing

Inlaid Bolts

Tapping

Techanical Datasheet

Material Tensile
Strength/MPa
Elongation At Break IZOD Impact Strength
/ J/m
Flexural Strength/
MPa
Glass Transition/
Density
/g/cm³
Material Certificate
PEEK 100 40% 6 170 152 1.30
CF-PEEK 112 10% 92 47 147 /
PEI 9085 54 3% / 90 186 1.34
PEI 1010 81 3.3% 23 16 200 1.27
PEKK 90 5% / 150 152 1.27
PPSU 51.6 6.5% 119 92.6 220 1.29
PA 66.2 ± 0.9 9.9 ± 1.5  9.6 ± 1.4  97 ± 1.1  69  1.12
CF-PA  105 ± 5.0  4.6 ± 0.5%  13.34 ± 0.5  169 ± 4.7  173  1.17
GF-PA  84.5 ± 2.1  3.4 ± 0.3%  21.2 ± 1.1  65.1 ± 2.2  157  1.2
PC  59.7 ± 1.8  12.24 ±1.44%  25.1 ± 1.9  94.1 ± 0.9  99.3  1.19
ASA  43.8 ± 0.8  6.7 ± 0.6%  10.3 ± 0.4  73.4 ± 2.1  100.2  1.14
CF-PLA  /  2%  /  89  60  1.29
PLA  46.6  1.90%  2.68  85.1  61  1.17
ABS  46  5%  19  /  97  1.06
PP  / >210%  10.5 13  / 0.89
TPU(95A)  /  14%  /  100  /  1.23
PETG  53  31%  4.5  /  68  1.24

丨ISO 10993         丨 FDA         丨 UL 94 2013        丨 RoHS        丨CE
